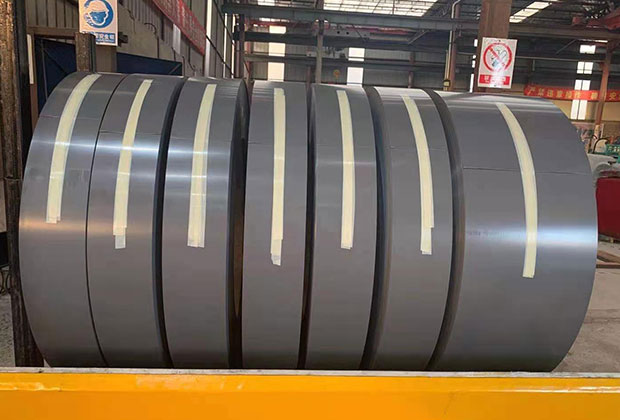

M4 27R090 Silicon Steel Cold Rolled Grain Oriented Coil

M4 27R090 Silicon Steel Cold Rolled Grain Oriented Coil

Types :M4 27R090 Silicon Steel Cold Rolled Grain Oriented Coil

Thickness :0.25-0.65mm

Quote Now

Send Email

Introduction

Silicon steel is an extremely low-carbon ferrosilicon alloy material with a silicon content of 0.5% to 4.5%. Silicon steel has the characteristics of high magnetic permeability, low coercivity, and large resistivity. According to different production processes, it can be divided into hot-rolled silicon steel and cold-rolled silicon steel; oriented silicon steel is mainly used in the manufacture of transformers (iron cores), and can also be used in large motors (hydropower, wind power) and other fields.

Product Name	0.3mm Cold rolled m6 grain oriented high silicon steel for transformer
Material	silicon steel
Grade	m6
Capacity	about 2000 tons per month for the coil product
Width	40mm-1200mm 1000/1100/1200(mm) or per customer's request
Nominal Thickness	0.3mm
Max.Core Loss	50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg.
Min.Induction	50w1300 1.74T,50W800 1.70T,50W600 1.67T.
Min.Lamination Factor	97%
Application	compressor motor,electric machinery,rectifier,transformer,etc.

Technical Data

Mechanical Property
Grade	Yeild Strength (N/mm2)	Ultra -Tension Strength (N/mm2)	Ductility (%)	Hardness (HV1
M35W230	430	560	20.0	225
M35W250	415	550	20.5	220
M35W270	400	515	20.5	215
M35W300	360	480	21.5	195
M35W360	350	480	23.5	190
M35W440	275	420	27.5	165
M35W550	265	415	33.5	160
M50W250	430	560	19.0	230
M50W270	410	550	21.5	225
M50W290	395	545	22.5	220
M50W310	385	510	24.5	210
M50W350	350	475	26.5	190
M50W400	320	460	36.0	170
M50W470	295	425	35.0	160
M50W600	280	410	37.0	140
M50W800	285	405	38.5	135
M50W1300(D)	250	360	40.0	115

Insulating Coating
Coating types	M11	M21
Component	Chromium containing , semi organic coating	Chromium free, semi organic coating
Coating thickness(μm)	0.7~1.5	0.8~5.0
Interlayer resistance (Ω•mm2 /slice)	≥100	≥100
Adhesive property	Class A or class B	Class A or class B
Punching property	Excellent	Excellent
Antirust property	Excellent	Excellent
Heat resisting property	Resistant annealing at 750 C, N2 protection, for 2h	Annealing resistance in general

Applications

Electrical steel (silicon steel sheet) is mainly divided into two categories: grain-oriented electrical steel and grain non-oriented electrical steel. The direction of easy magnetization grains of oriented electrical steel is distributed along the rolling direction. The rolling direction has excellent characteristics such as high magnetic induction, low iron loss and low magnetostriction. At the same time, it can also be processed by magnetic domain refinement technology to obtain lower iron Loss of performance, widely used in the field of transformer industry. The grain direction of non-oriented electrical steel is randomly distributed, and the electromagnetic properties are uniform in all directions. It is widely used in the motor industry.

Field	Purpose
Rotary machine	Large motor Medium motor Compressor motor General Motors Small precision motor Motor for electric vehicle
The Immobilizer	High frequency working motor Miniature power supply transformer Instrument use transformer Reactor Welding machine use transformer Power switch Manostat Magnetic sealing unit Electromagnet for accelerator
