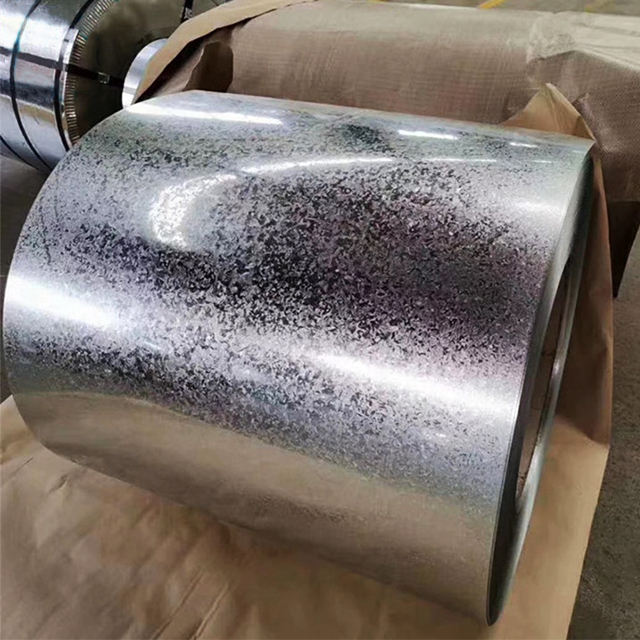

Prime Thin Metal Sheet Sheet DX51D Z275 Galvanized Steel
Prime Thin Metal Sheet Sheet DX51D Z275 Galvanized Steel is produced by passing the Full Hard sheet which has undergone the acid washing process and rolling process through the zinc pot, thereby applying zinc film to the surface.
It has excellent corrosion resistance, paintability, and workability due to Zinc’s characteristic. Usually hot dipped galvanized steel sheet and galvanized steel coil process and specifications are basically the same.
Lenser Galvanized Coil |
|||
Thickness | 0.12-4.0mm | Tolerance | +/-0.02mm |
Width | 30-1500mm | Zinc Coating | 30-275g/m2 |
Package weight |
2 -6 ton per coil |
Surface | Passivation,Fat liquoring,
Stop-off lacquer |
Hardness | HRB50-71(CQ Grade),
HRB45-55(DQ Grade) |
Tensile Strength | 270-500(CQ Grade),
270-420(DQ Grade) |
Yield Strength |
140-300 (DQ Grade) |
Elongation Percentage | 22 (CQ Grade thickness less 0.7mm),24 (DQ Grade thickness less 0.7mm) |
Spangle coating | Big Spangle, small Spangle,Spangle-free | ||
Standard | EN 10142,EN 10147,EN 10292,JIS G3302, ASTM A653/A653M, BQB 420 | ||
Grade | DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,S220GD+Z,DX51D+Z/SGCC/A653/Automotive grade,etc | ||
Surface Treatment | Passivation(C),Oiling(O),Lacquer sealing(L),Phosphating(P),Untreated(U) | ||
Surface Structure | Normal spangle coating (NS),minimized spangle coating(MS),spangle-free(FS) | ||
Application | Building , Corrugated sheet Roofing, electrical, Appliances, Automobile industry,
Transport Packaging ,Machinery processing ,Interior decoration , Medical |
||
Packing | Inside:Anti-rust paper,Plastic.
Outside:Steel inner and outside guard board,Circle Iron guard board for both side,Outside iron guard board, 3 Radial Strapping and 3 Latitude Strapping. We can also pack according to your requirement. |
