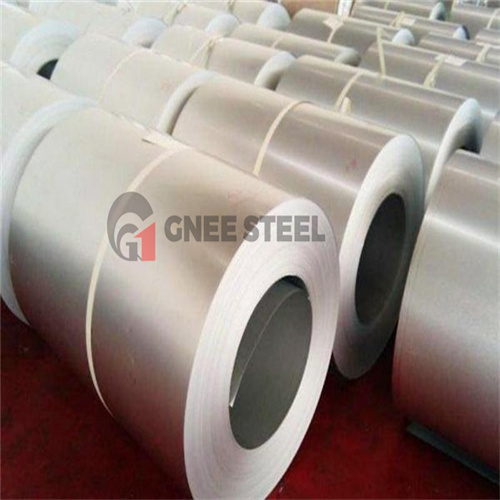

Hot Dip Galvanized Coil Dx52 Z100
Galvanized coil: dip the steel sheet into the molten zinc bath to make its surface adhere to a layer of zinc. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in the molten zinc plating bath to make galvanized steel plate; Alloyed galvanized steel sheet.
GRADE | JIS G 3302 | ASTM A653 | EN 10142-47 |
CQ | SGCC | CS | DX51D |
LFQ | SGCD1 | CS | DX51D |
DQ | SGCD2 | CF | DX52D |
DDQ | SGCD3 | DDS | DX53D |
SQ | SGC 370~570 | G 230~550 | S220~S550 |
Coating Mass(g/m2) | Z06 ~ Z350 | ||
Thickness (mm) | 0.3 ~ 3.00 | ||
Width (mm) | 900 ~ 1250 | ||
I.D (mm) | 508 | ||
O.D (mm) | 800 ~ 2140 | ||
Coil weight(MT) | 1 ~ 22 | ||
Surface finish | Regular Spangle Minimized Spangle Skin Passed Zero Spangle |
||
Surface Treatment | Chromated (15mg ~ 25mg) Chromated & Oiled Non-chromated but Oiled |
Galvanized coil is a thin steel plate which is immersed in a molten zinc bath to make its surface adhere to a layer of zinc. Galvanized coils can be divided into hot-rolled galvanized coils and cold-rolled hot-rolled galvanized coils, which are mainly used in construction, home appliances, automobiles, containers, transportation and household industries. Especially in steel structure construction, automobile manufacturing, steel warehouse manufacturing and other industries.
FAQ
Q: When will make delivery?
A: Sample Order: 1-3 days after receipt of the full payment.
Stock Order: 3-7 days after receipt of the full payment.
OEM Order: 12-35 days after receipt of the deposit.
Q: Which mode of payment is it?
A: T/T, Western Union, Moneygram, Escrow.
Q: Do you support drop shipping?
A: Yes, your drop shipping is available.
Our Email: info@gescosteel.com.
